MSI MEG X870E GODLIKE Review: AM5 Motherboard with Extreme Features

MSI MEG X870E Godlike delivers extreme AM5 performance with advanced PCIe Gen5 support and comprehensive connectivity options.

Hardware by Nakiro on Sep 13, 2025

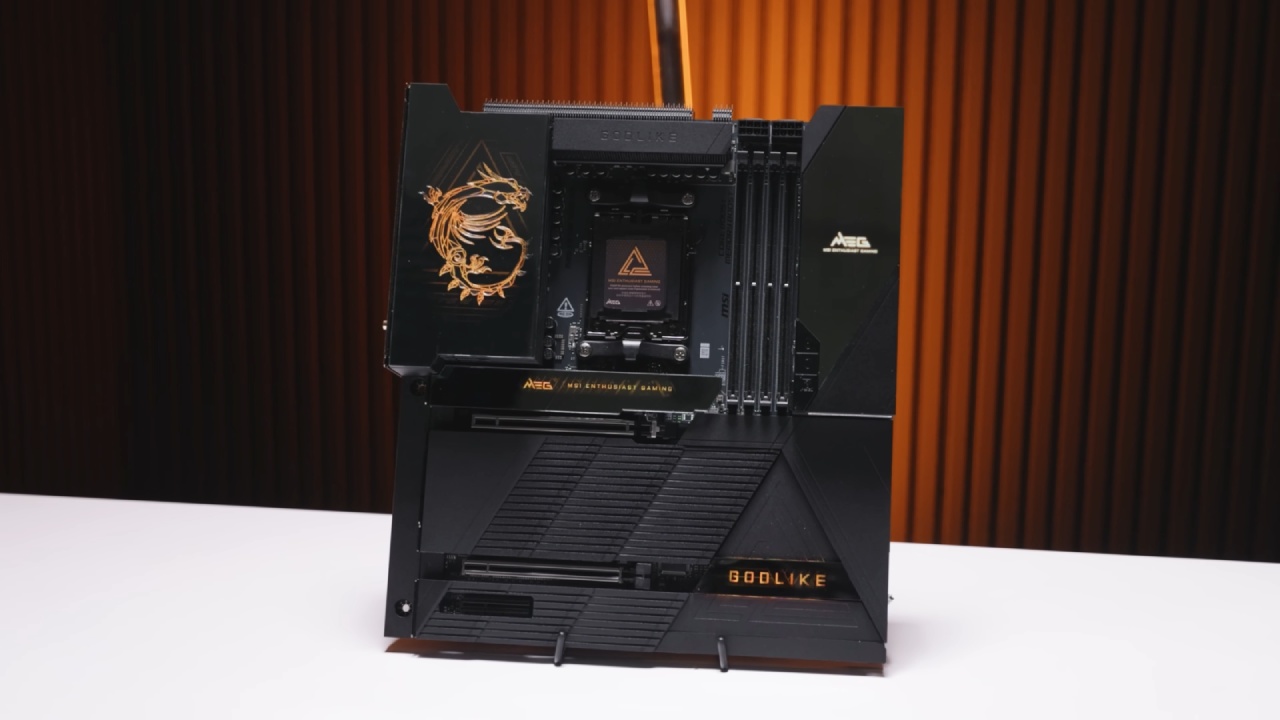

MSI MEG X870E easily stands out as one of the most absurd AM5 motherboards ever created. With a jaw-dropping $1,100 price tag and a design that is both over-the-top and practical in surprising ways, it combines extreme features, unique design choices, and sheer power into one package.

It is a niche board with a limited run, making it one of the rarest and most extravagant options for PC enthusiasts.

MSI MEG X870E, Review, AM5 Motherboard, with Extreme Features, NoobFeed

MSI MEG X870E Accessories

When opening the box, everything is presented on display, highlighting the premium nature of the Godlike. Alongside the motherboard itself, we find a wide range of accessories.

Thermal probes allow monitoring of case temperatures, SATA cables are included in abundance, and a breakout cable for front panel connectors makes installation easier.

MSI has also shifted most of the fan headers to an external controller box, which connects to the board via a dedicated header. Through MSI Center software, you can control all fan headers individually. This box also manages RGB lighting and includes its own power input.

Wi-Fi 7 antenna connectors, a USB dongle with drivers, spare M.2 screws, thermal pads, and removal tools are also included. The accessory kit also comes with labels, stickers, and documentation. But the best part is the integrated PCIe Gen5 M.2 expander card.

Hot-Swappable M.2 Expander Card

The PCIe Gen5 M.2 card is one of the most unique aspects of the Godlike. It supports two hot-swappable M.2 drives, housed in removable sleds with integrated heatsinks.

These can be swapped out without powering down, offering convenience and practicality rarely seen in consumer boards. It requires PCIe power and has a dedicated fan header for cooling, making it a truly over-the-top but functional addition.

Headers, Connectors, and Layout

The Godlike uses a slightly different approach to headers. Standard connections such as front panel audio, front panel switches, and SATA ports are present.

However, MSI has added unique touches, including right-angled USB headers, additional SATA ports, and switches for RGB and BIOS functions hidden behind magnetic covers.

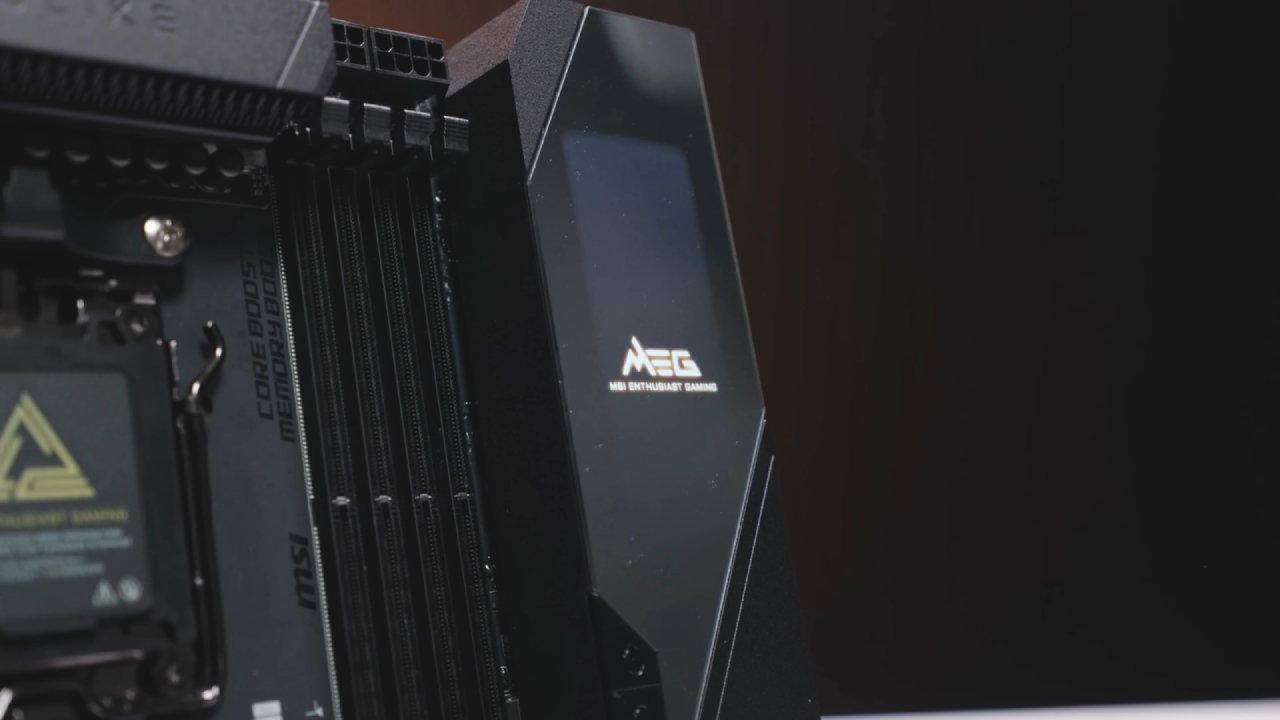

The "Easy Bridge" connector system centralizes front panel, fan, RGB, and thermal probe headers, keeping cable management neat. It attaches magnetically and can be removed for access to components like the CMOS battery. On top of that cover is a built-in screen that displays debug codes and system information.

Power delivery is provided through two 8-pin EPS connectors, positioned above the memory slots for improved clearance.

MSI MEG X870E, Review, AM5 Motherboard, with Extreme Features, NoobFeed

PCIe and VRM Design

The Godlike offers three PCIe slots, including one PCIe Gen5 x16 slot for the primary GPU, one PCIe Gen5 x8 slot for additional high-bandwidth devices, and one PCIe Gen4 x4 open-ended slot for flexible expansion.

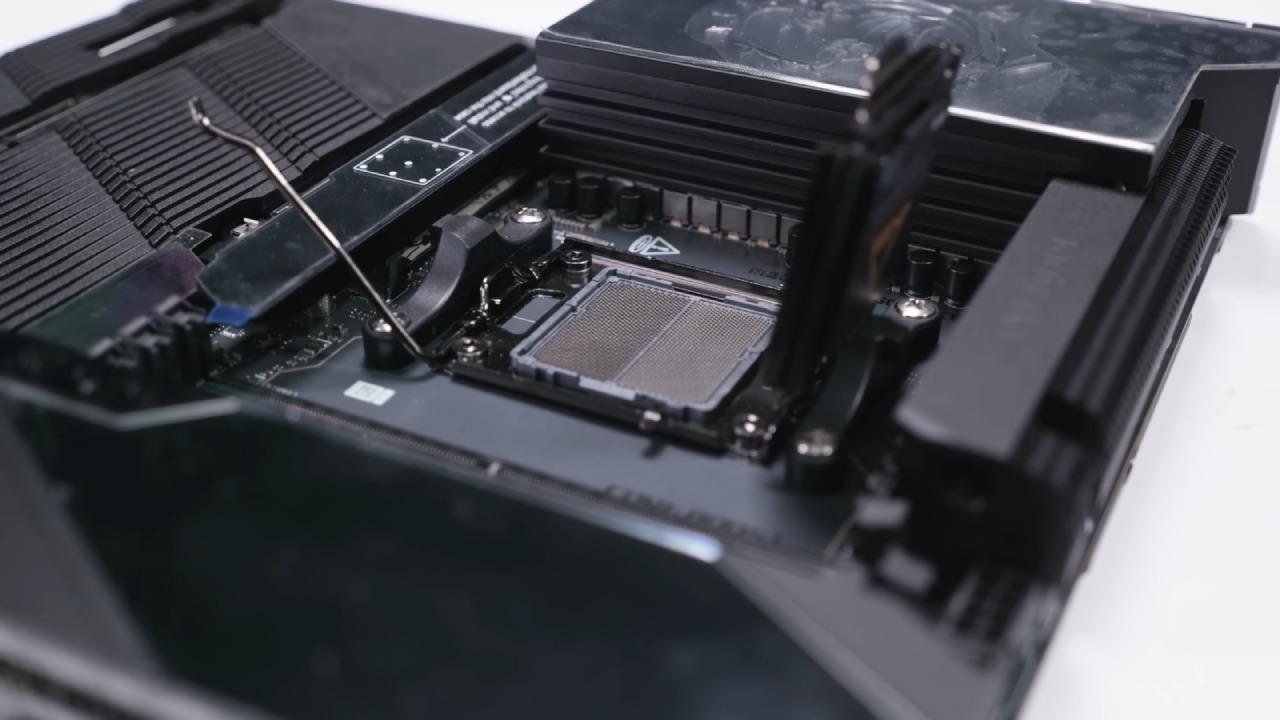

The top PCIe slot uses MSI's quick-release system, integrated into the cover. VRM design is a 24+2+1 duet rail power system with heat pipes connecting massive heatsinks across the top and the I/O cover. This ensures thermal efficiency for Ryzen 7000, 8000, and 9000 series processors.

Memory and Storage Support

The board supports up to 256GB of DDR5 memory at speeds up to 9000MT/s. There are four DIMM slots in total.

For storage, the Godlike includes five onboard M.2 slots, with 2x PCIe Gen5 x4 slots for next-generation high-speed drives and 3x PCIe Gen4 x4 slots for additional fast storage expansion.

Each slot is clearly labeled to indicate whether it connects to the CPU or chipset. Quick-release clips make installation and removal simple, much like using a joystick mechanism.

Rear I/O Connectivity

The rear I/O is fully loaded, offering 8x USB Type-A 10Gb ports, 5x USB Type-C 10Gb ports, and 2x USB4/Thunderbolt 4 ports with DisplayPort Alt support, along with a BIOS flashback button, clear CMOS button, and smart button.

Networking is covered with 10Gb Ethernet, 5Gb Ethernet, and Wi-Fi 7 antenna connectors. At the same time, the full audio suite includes an optical S/PDIF output for high-quality sound.

MSI MEG X870E, Review, AM5 Motherboard, with Extreme Features, NoobFeed

Final Thoughts

We can't ignore that this board costs $1,100 in the US, putting it in the same class as ultra-premium server-grade solutions. Despite its price, it has several features that feel genuinely useful.

The hot-swappable M.2 expander card is one of the most practical innovations we've seen, and the magnetic Easy Bridge system keeps cable clutter to a minimum.

If you are the type who values 10Gb Ethernet, USB4 connectivity, and an all-in-one design that hides cables and maximizes power delivery, you will appreciate what MSI has done here. We may not need a motherboard this insane, but it's hard not to admire how ridiculous and feature-rich it is.
