MSI Ventus 2X RTX 5060 Ti Review: Gaming Performance and Noise

MSI Ventus 2X offers compact 1440p gaming performance with a focus on design and cooling efficiency.

Hardware by Nakiro on Nov 09, 2025

The MSI Ventus 2X 16GB RTX 5060 Ti strikes a good balance between compact size and next-generation performance. It was designed for gamers and PC enthusiasts who want to save space without sacrificing too much functionality. It features NVIDIA's Ada Lovelace architecture, which delivers exceptional 1440p performance, DLSS 3 support, and powerful ray tracing capabilities in a compact, streamlined design.

This GPU is designed to provide a good balance between cost, size, and power efficiency. However, even if it boasts great specs, factors such as its heat handling and noise level are crucial in determining whether it's truly worth your money. Let's take a closer look at its design, performance, and overall worth.

MSI, Ventus 2X RTX 5060 Ti Review, Gaming Performance, Noise, NoobFeed

Design and Build Quality

MSI has gone for a straightforward, clean aesthetic with the Ventus 2X. The card features a plastic shroud paired with a sturdy metal backplate, delivering a combination of lightness and rigidity. The metal backplate adds both protection and a premium appearance, making it suitable for cases with transparent side panels.

One of the most interesting aspects of the Ventus 2X is its PCB layout. The PCB is notably short, ending well before the length of the shroud. This design decision leaves a cutout at the end, allowing additional airflow to pass through the heat sink for better cooling efficiency. Power delivery is handled through a single eight-pin connector located at the top, which simplifies cable management and maintains a neat overall design.

Connectivity options are modern and flexible. You get three DisplayPort 2.1 outputs and one HDMI 2.1 port, supporting up to four displays simultaneously. This ensures compatibility with the latest high-refresh-rate monitors and 4K displays.

The card measures 228mm in length and roughly 128mm in height, making it a genuinely compact two-slot GPU. It fits easily into smaller mid-tower or mini-tower cases. The heat sink design is simple yet functional, featuring two primary heat pipes that make direct contact with the GPU die and a single pipe that pierces through the top of the heat sink.

The memory modules benefit from active cooling via an aluminum heat plate that maintains contact with the VRAM chips. The VRMs also receive direct thermal contact with the heat sink. This isn't the most effective way to cool things down. Still, it does keep the parts cool enough to maintain stability and prolong their lifespan.

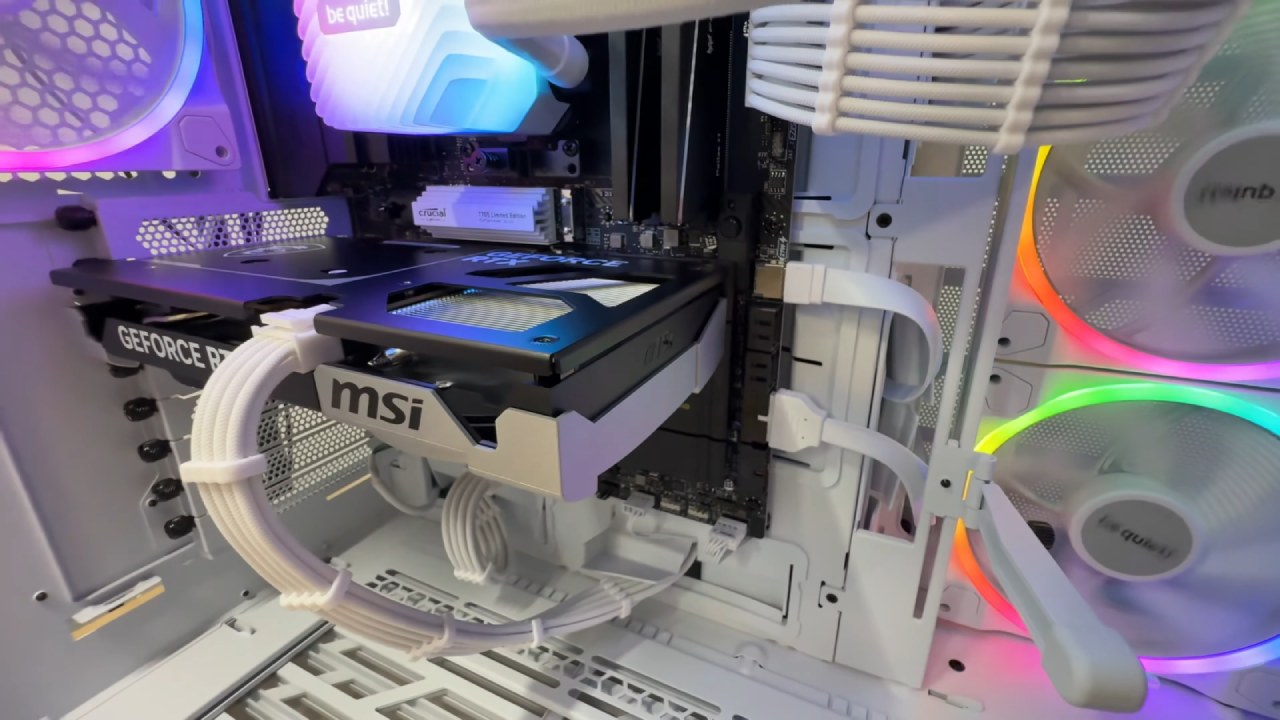

Installation and Aesthetic Fit

The Ventus 2X fits easily inside a PC, even in larger cases that are not necessary. Due to its compact footprint, the GPU appears smaller than a standard ATX motherboard, which may surprise some builders. Despite the size difference, it still maintains a clean, professional appearance once installed, with the MSI logo positioned on the side to remain visible through the case window.

The understated design complements a wide range of builds, from minimalist to RGB-heavy and professional workstation setups. We found that, despite its physical size being comparable to some high-end GPUs, the card doesn't feel out of place in a full-size case.

MSI, Ventus 2X RTX 5060 Ti Review, Gaming Performance, Noise, NoobFeed

Power Requirements and Thermal Behavior

MSI recommends a 600-watt power supply for the RTX 5060 Ti Ventus 2X. During testing at a controlled room temperature of 22°C (72°F), the GPU consumed around 180 watts under gaming load. The GPU temperature remained stable at around 69–70°C, which is acceptable for this power range.

However, the fan behavior tells a different story. Even in a cool environment, the fans ramped up to nearly 50% speed, spinning at approximately 2600 RPM. This maintained the core temperature, although it generated a significant amount of noise. Additionally, the GPU hotspot sensor appeared to malfunction, producing readings that were lower than the core temperature, which is likely incorrect.

Noise Levels and Acoustic Performance

The cooling technology maintains the GPU temperature within a safe range, albeit at the expense of ear comfort. The fan noise becomes apparent quickly once the card is under load. Even when gaming with headphones, the whirring can be distracting over time.

In quieter environments or during productivity tasks, the constant mid-range hum might be annoying for users who value silence. Given that the noise level is already significant in a 22°C room, we can safely assume that in warmer conditions or during summer, the GPU will get even louder. The cooling efficiency is adequate, but the acoustics leave much to be desired.

MSI, Ventus 2X RTX 5060 Ti Review, Gaming Performance, Noise, NoobFeed

Gaming and Real-World Performance

In terms of gaming, the RTX 5060 Ti 16GB delivers performance suitable for most modern titles at a 1440p resolution. It works great in games that support DLSS 3, where frame generation makes gameplay fluid and responsive even when the graphics are really demanding. At 1080p, the performance is great; it can easily handle high-refresh-rate monitors for competitive gaming.

For those using 4K or ultra-wide 3440x1440 monitors, the Ventus 2X can still deliver a playable experience with some graphics adjustments. With DLSS enabled and a bit of tuning, it's capable of maintaining fluid frame rates in many recent AAA titles. However, the cooling noise might distract from the immersive experience, especially during longer sessions.

Comparing Ventus 2X and Inspire 2X

The Ventus 2X has a lot of power in a small package, but it generates too much noise for projects that require quiet operation or good sound balance. If you prefer MSI's compact GPUs, the Inspire 2X variant offers a much better balance between cooling efficiency and noise control.

The Inspire 2X features an improved heat sink design that dissipates heat more effectively while maintaining quieter fan speeds. Both cards share a similar footprint, but the cooling solution on the Inspire 2X makes a significant difference in user experience.

MSI, Ventus 2X RTX 5060 Ti Review, Gaming Performance, Noise, NoobFeed

Final Thoughts

The MSI Ventus 2X 16GB RTX 5060 Ti is a compact yet powerful graphics card that is ideal for anyone who wantswants fast 1440p performance and the latest display connections. It does a great job at gaming and saving space, but it doesn't do a good job at managing noise.

If you can handle the increased fan noise or plan to use a case that blocks it, this GPU will perform well for both gaming and creative tasks. However, for those who prefer quiet computers, the MSI Inspire 2X is a better option, as it is quieter and cooler.

Ultimately, the Ventus 2X demonstrates that design and thermal engineering make all the difference. The card performs well where it counts, but could have been truly outstanding with a more refined cooler.
