The Sapphire Nitro Plus B850A Wi-Fi 7 motherboard is built with expansion, adaptability, and effective cooling in mind, as its layout and design clearly demonstrate. It features three full-size expansion slots. The primary slot is Gen5, while the other slots operate electrically at PCIe 4.0 x4 and PCIe 4.0 x2.

The board offers a wide range of connectivity options, BIOS functions, and storage support, with all M.2 slots beneath the GPU, protected by a large heatsink.

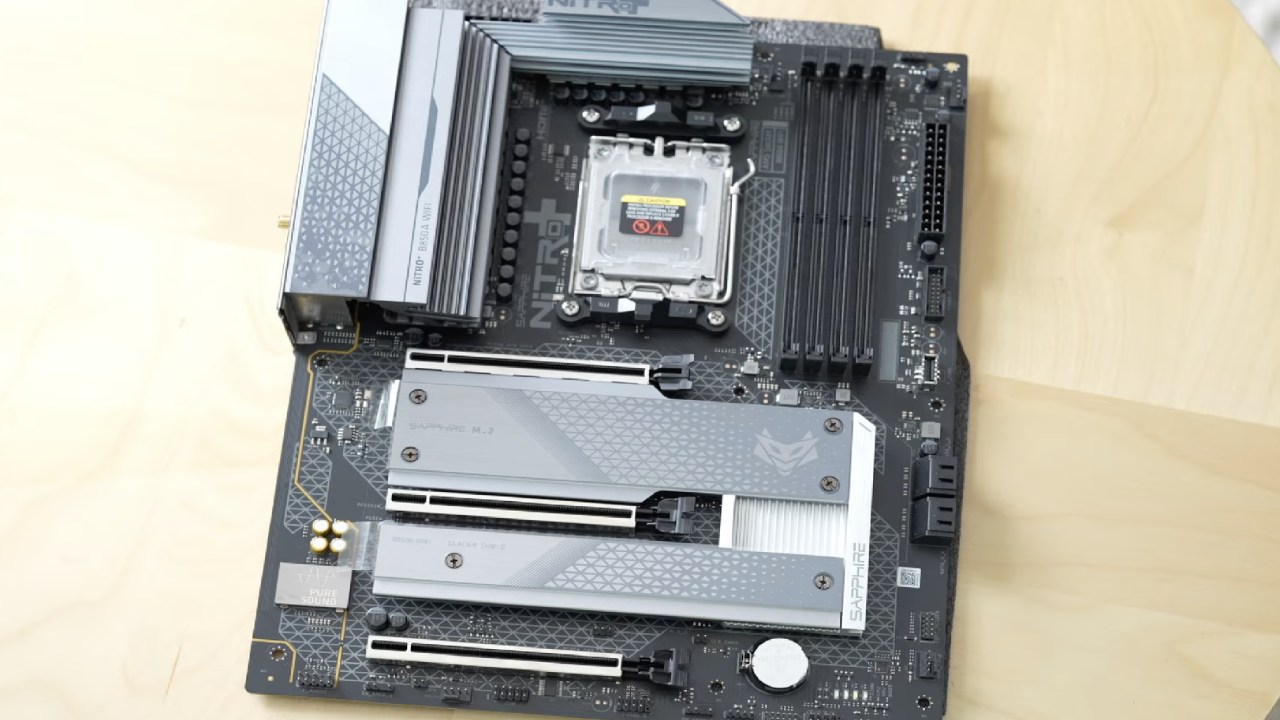

AM5 B850A, Motherboard with Gen5 PCIe Slots, Wi-Fi 7 Connectivity Review, NoobFeed

PCIe Slot Layout and Connectivity

We see an unusual PCIe slot configuration. The top slot is a full Gen5 slot, while the two lower x16-sized slots operate electrically at PCIe 4.0 x4, and the bottom slot operates at PCIe 4.0 x2. We also get an RS232 serial port header, front-panel audio, addressable RGB, a four-pin fan header at the bottom edge, a four-pin speaker header, a TPM header, and a front-panel header.

The board includes the older 50/50 analogue RGB header and a single USB 2.0 header. Another four-pin fan header sits at the lower front edge.

Along the edge, we have four SATA6GB/s ports, a USB Type-C header, and a 20-pin 5GB USB header. At the top, there are three more four-pin fan headers. Power input includes dual 8-pin connectors.

Rear I/O Layout

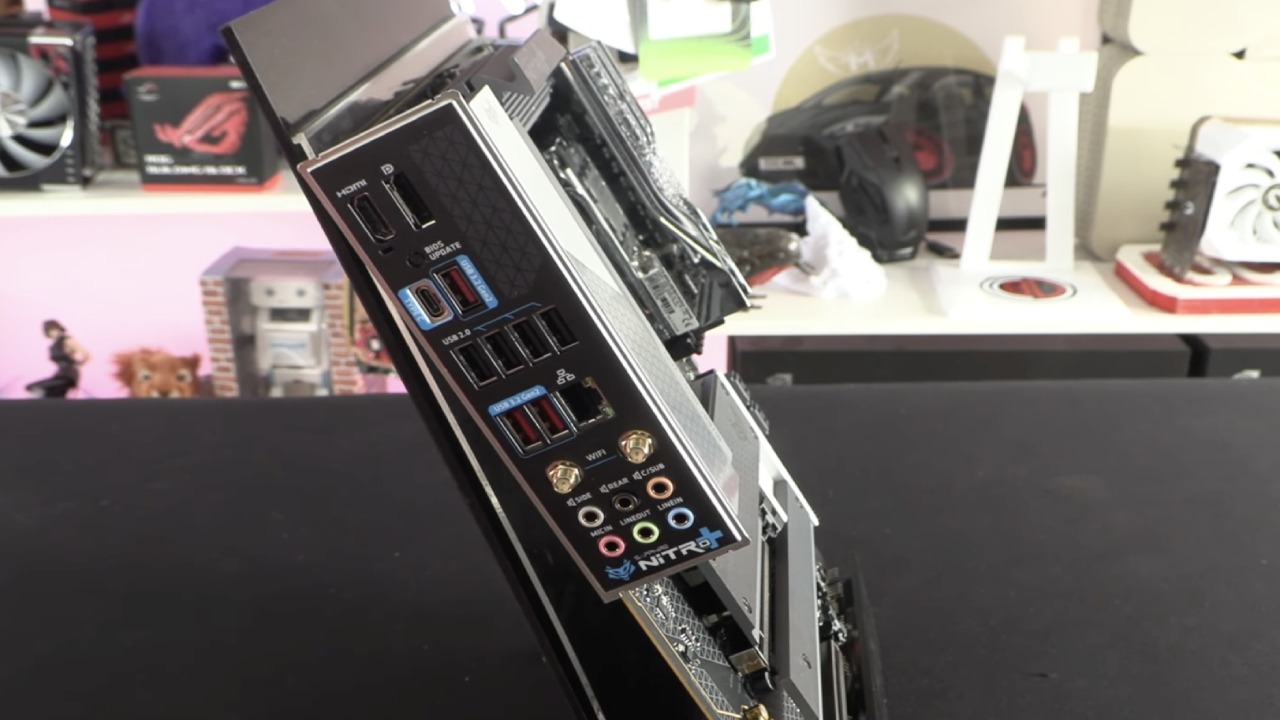

We get a full-size DisplayPort and HDMI output, a BIOS flash port with a hardware button, USB3.2 Gen2 ports, a Type-C port, four USB2.0 ports, two USB3.2 Gen2 ports, RJ45 Ethernet, Wi-Fi 7, and six analogue audio jacks. Sapphire includes full 7.1 analogue audio. We prefer an optical output, but the analogue flexibility is positioned as a differentiator.

Storage and M.2 Arrangement

There are three M.2 slots located underneath the GPU. It may not be ideal for airflow, but Sapphire uses a large heatsink assembly that pulls air toward the front. Under typical conditions, even a Gen5 NVMe drive should remain within control with this setup. We intend to test this behaviour further.

The accessory set includes two SATA cables, the Wi-Fi antenna, and the manual. Sapphire keeps the bundle minimal.

Memory Support and Installation Notes

The board officially supports up to 192GB of DDR5 memory. We will attempt 256GB using Crucial’s 5600MT/s kit. If it works, we plan to test the Trident Z5 NeoRGB EXPO kit, which can reach DDR5-6000 with four DIMMs on compatible motherboards and CPUs that allow the necessary overclocking.

We also appreciate the postcode diagnostic LEDs on the front edge for troubleshooting, especially when testing large memory configurations.

Sapphire uses four Phillips screws to access the toolless M.2 mounts. The thermal pad underneath is unusually thick. It will not match the efficiency of thinner, high-conductivity pads. Still, it offers better heat transfer than no pad at all when the heatsink saturates.

BIOS Overview

We like that the BIOS provides quick-set toggles for PBO, XMP/EXPO, and Resize Bar. Resize Bar is enabled by default. Under Advanced settings, you can access MMU, Precision Boost Overdrive, Smart Access Memory, Resize Bar, c-states, and SVM mode.

Under Devices, we can toggle RS232, Bluetooth, Wi-Fi, integrated graphics, primary display options, PCIe bifurcation (including x8/x4/x4), PCIe link speed, and LAN controller activation.

Storage settings cover SATA configuration, though NVMe drives do not appear under that section. Power options include power-loss behaviour and USB-related settings. Sapphire has customised many of these menus. Secure Memory Encryption is available, and NX mode settings are accessible. BIOS password support is also included.

Under Overclocking, you can adjust CPU PBO settings and advanced memory properties. The memory timing menu aligns closely with tools like ZenTimings, allowing detailed manual tuning. Voltage controls are included.

The Status screen is arranged cleanly, showing sensors, fan speeds, voltage inputs, and CPU voltages. One omission is the AMD CBS and PBS menus, which provide expanded low-level tuning. We did not find these exposed.

Compatibility and Linux Experience

Even though EPYC is not on the QVL list, EPYC on AM5 posts on this motherboard. ECC UDIMMs did not work during testing. Linux support is solid. The audio codec functions normally, though the port layout may require manual relabeling depending on the desktop environment. Otherwise, the operation is stable.

AM5 B850A, Motherboard with Gen5 PCIe Slots, Wi-Fi 7 Connectivity Review, NoobFeed

Performance, Thermals, and VRM Behaviour

The VRM cooling setup appears more aesthetic than functional in some areas, but thermals remained stable, even with an overclocked 9950X. We observed reasonable temperatures overall.

EPYC memory behaviour is restricted, as expected. With 128GB or 256GB installed, memory speed defaults to around DDR5-3600 for 2DPC high-density configurations.

We view this as a solid B850 motherboard. Sapphire avoids unnecessary high-end chipset choices. Two PCIe Gen5 NVMe slots would have been beneficial, but platform limits may prevent that configuration.

Additional USB5 and 10GB USB ports at the rear could also be useful. Still, the chosen layout supports the intended value position, including four USB 2.0 ports and a balanced selection of high-speed ports.

Final Thoughts

We will keep the board on the test bench for long-term burn-in and additional experiments. So far, we like the design choices and overall function. The Sapphire Nitro Plus B850A Wi-Fi 7 presents an interesting direction for Sapphire in the motherboard market. If you want a specific test or if we missed something, reach out on the forum.
