Gigabyte Extreme TRX50 AI Motherboard Review

TRX50 AI motherboard offers unprecedented memory capacity, multi-GPU support, and extreme power delivery for high-end workstation builds.

Hardware by Katmin on Nov 17, 2025

The rise of specialized high-end motherboards has led to designs that push the limits of space, power delivery, compatibility, and features. One of these is a model that combines cutting-edge engineering with unique features, claiming to be AI-friendly and capable of running some of the most power-hungry processors on the market.

Its unusually wide layout, heavy frame, and abundant connectors set it apart from standard platforms while raising questions about practicality and compliance.

Gigabyte, Extreme TRX50 AI, Motherboard Review, NoobFeed

First Impressions

When we open the package, we immediately notice the weight of the board and an assortment of accessories. We get braided SATA cables, a small DisplayPort cable for video passthrough, a decibel sensor, temperature sensors, and a dual-power-supply cable.

When you connect two power supplies, the motherboard allows both to wake up simultaneously with a single button press, which becomes particularly important when powering multiple PCIe devices. We also find the front panel connector accessory, a Wi-Fi antenna, and additional cables intended for monitoring and system integration.

Size and Layout

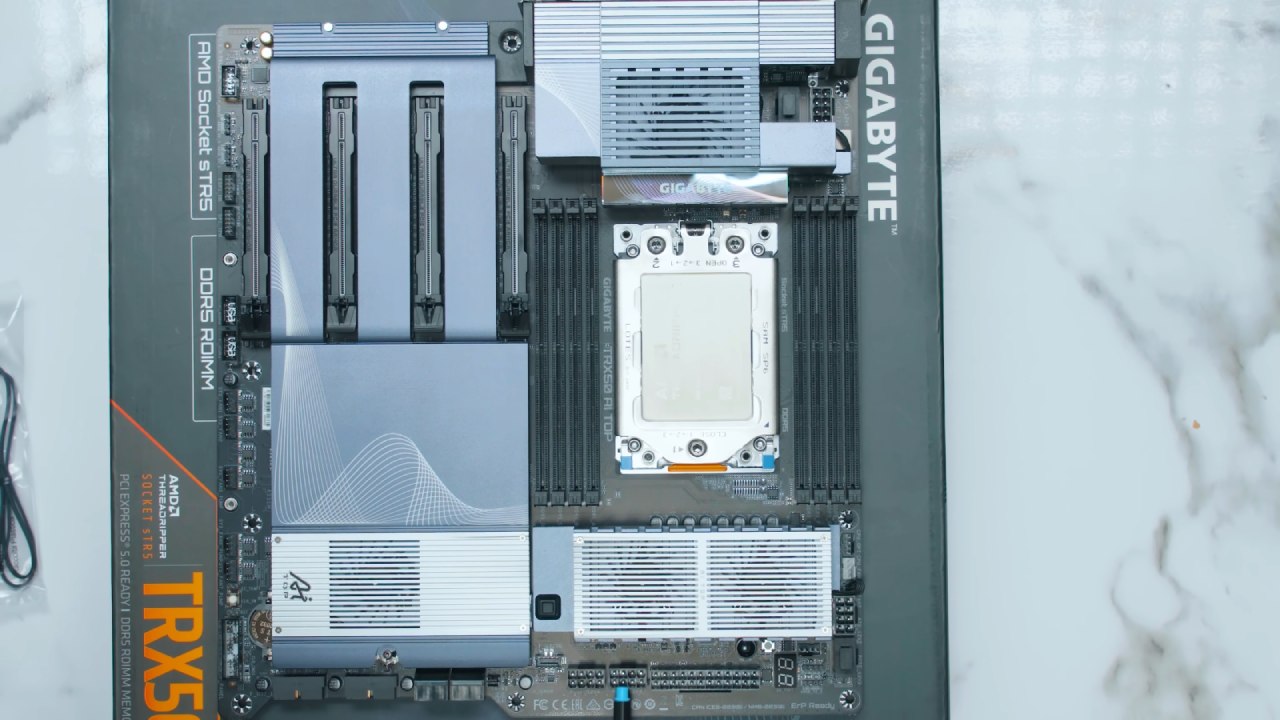

When we place the board next to something like an X870E Aorus Master for scale, the difference is immediately visible. The new board extends far wider, well beyond normal E-ATX dimensions, meaning most cases will not support it. The VRM cooling spans a large section of the board and includes a curved indentation on one side.

We notice eight DIMM slots, which introduces a controversial feature. The platform technically supports Threadripper and Threadripper Pro. Although Threadripper is designed for quad-channel memory, and the Pro version utilizes eight-channel memory, the board physically includes eight slots.

The labeling suggests specific slot usage depending on the CPU. Still, we can't help wondering whether filling every slot would divide channels or cause them to function outside their intended specifications. The total supported memory reaches 2TB of DDR5, which means you could theoretically load an entire OS into RAM.

CPU Installation

Inside the large ST5 socket, we slide in the $5,000 CPU, aligning it carefully before locking the mechanism with its three-step closure.

The board supports both Pro and non-Pro Ryzen 7000-series Threadrippers, and we expect compatibility with future Threadripper 9000 units as well. Given the price of these processors, careful installation feels essential.

Gigabyte, Extreme TRX50 AI, Motherboard Review, NoobFeed

Power Delivery and Headers

Moving across the board, we see blocked-off PCIe 8-pin connectors that are not required for basic operation but can be used to supply additional power to PCIe slots. Since each slot can deliver up to 75W, multiple GPUs or accelerators may require additional power input. CPU EPS connectors, MOSFET fan headers, CPU fan headers, and multiple 2-amp fan headers populate the upper area.

We then see more EPS connectors and 8-pin PCIe power points. The lower edge includes 5V ARGB, 12V ARGB, temperature sensor ports, a debug LED, reset and power switches, the 24-pin ATX connector, two additional PCIe power inlets, a 20GB/s USB-C front panel header, SATA ports, USB 3.2 Gen1 headers, a clear CMOS header and switch, more fan headers, USB 2.0 headers, a TPM header, an eSPI header, additional ARGB headers, and finally the front panel audio connector. A switch for unlocking the top GPU slot is also present.

M.2 and PCIe Capabilities

Lifting the toolless heatsink reveals four M.2 slots. When you use Threadripper Pro, all four run PCIe Gen5. With the non-Pro Threadripper, only three Gen4x4 slots activate, while the fourth is disabled because the CPU lacks the necessary lanes.

The included heatsinks support dual-sided modules, allowing high-performance NVMe drives to operate at sustained speeds. In RAID 0, these Gen5 drives could potentially exceed 20GB/s, possibly nearing 30GB/s, which is far beyond typical consumer needs but appealing for extreme workstations or AI datasets.

Below them sit four PCIe slots. With Threadripper Pro, all run PCIe Gen5x16. With the non-Pro Threadripper, the first three run Gen5x16 while the bottom slot runs Gen4x16. All lanes originate from the CPU rather than the chipset.

Backplate and Rear I/O

The motherboard features a full-metal backplate with fully open standoff points. Notably, the underside of the CPU socket lacks thermal pads, meaning heat is not transferred into the rear armor.

On the rear I/O, we find a Wi-Fi 7 connector, six USB-A 10GB/s ports, dual 10GB/s LAN ports, two USB4 ports with display passthrough capability for GPUs, audio jacks, and a Q-Flash Plus button for BIOS updates.

AI-Focused Purpose

The "AI" labeling becomes clearer when we consider the intended workloads. We see the board designed for users wanting to train their own AI models locally using multiple high-power GPUs. To do that, you still rely on GPUs from manufacturers like Nvidia and CPUs from AMD, meaning you end up supporting both industries.

Since the PCIe slots sit extremely close together, using full-size GPUs requires riser cables or an external mounting structure. While two-slot workstation GPUs, such as the RTX A6000, exist, they may still be too thick for this layout. Riser-based vertical stacking becomes the practical solution if you want to run something like four RTX 5090 units simultaneously.

Gigabyte, Extreme TRX50 AI, Motherboard Review, NoobFeed

Final Thoughts

The motherboard is designed for individuals who seek optimal performance and are unwilling to make any compromises. It can support multiple Gen5 M.2 drives, four full-bandwidth PCIe devices, extreme Threadripper CPUs, and a substantial amount of RAM.

For most projects, we don't need 20GB/s of storage or eight memory channels, but when you spend this much, it seems like you have to push everything to its limit. The board is a great place for anyone with the money and the drive to develop outrageous things. For the rest of us, it's still something to admire from afar until the next generation of gear comes out.
