ASRock X870 Taichi: A High-End Motherboard Built for Next-Gen AMD Performance

Built for stability and performance, the ASRock X870 Taichi combines premium design with exceptional power delivery and next-generation connectivity.

Hardware by RereRara on Oct 28, 2025

The ASRock X870 Taichi is a high-end extended ATX motherboard that works with AMD's AM5 architecture. It has a strong build, great performance, and great efficiency. It has a sleek design, cutting-edge toolless technology, and practical cooling, making it a full solution for high-end PC builders.

The overall design follows ASRock's recognisable Taichi theme, but with an AMD look that's understated compared to previous generations, offering a balanced blend of performance-oriented engineering and subtle visual appeal.

ASRock, X870 Taichi, A, High-End Motherboard Built for, Next-Gen AMD, NoobFeed

Board Design

The X870 Taichi is an extended ATX motherboard, slightly larger than standard ATX designs, so users should ensure ASRock's case supports this form factor. The board sports a sleek black PCB with silver and gold accents, maintaining the Taichi's trademark clockwork-inspired motif but in a toned-down execution.

The build feels premium, with large heat sinks and solid metal accents across various components for structural rigidity and improved cooling.

CPU Socket & VRM Layout

AMD's AM5 socket, which supports processors from the Ryzen 9000, 8000, and Taichi series, is at the centre of the board. With each of the 24 CPU phases providing 110A of power, the socket is surrounded by an amazing 24+2+1 power phase design.

To guarantee effective thermal management, ASRock has installed sizable AMD Serenaded heat sinks over the VRM region. A small cooling fan is embedded beneath the rear I/O cover, helping maintain stable temperatures under heavy loads while remaining quiet during normal operation.

Rear I/O Cover & Top Edge

The top edge of the board features a large rear I/O shroud with the Taichi logo illuminated by RGB lighting. The integrated fan vents through the slits in this cover.

Two 8-pin EPS connectors are neatly tucked in the top corner, ensuring stable power delivery to the CPU. Along the top edge, three 4-pin headers are provided—two for CPU fans and one for an AIO pump.

Support for DDR5 Memory

Adjacent to the CPU socket are four DDR5 DIMM slots that can accommodate up to 256GB of DDR5-8200 memory. Below the memory slots is a tiny 4-pin fan header, offering more cooling options.

First tool-less design and M.2 slot

A PCIe 4.0 M.2 slot, positioned for maximum accessibility and airflow, is located adjacent to the memory slots. SSD installation is simple in this slot thanks to ASRock's toolless technology.

Users can secure or remove the drive without needing screws by simply pulling a circular latch to raise the heat sink cover. The procedure is made even simpler by the M.2 slots' tiny locking tabs, which snap into position when depressed.

Front-Edge Connections

Along the front edge, the X870 Taichi includes a postcode display, power and reset buttons, two 3-pin ARGB headers, the 24-pin ATX connector, a USB 3.2 Gen1 header, and a USB 3.2 Gen2x2 Type-C header. Below these, six SATA 6Gb ports are neatly arranged at a 90° angle to prevent interference with expansion cards.

Bottom Connections

The bottom edge is lined with additional headers, including HD audio, 4-pin RGB, 3-pin ARGB, multiple sensor headers, two USB 2.0 headers, three fan headers, a pump header, another USB 3.2 Gen1 header, a clear CMOS header, and the front panel connectors. The layout is clean and organised, making cable management easy.

ASRock, X870 Taichi, A, High-End Motherboard Built for, Next-Gen AMD, NoobFeed

M.2 Slots & Cooling

Large heat sinks dominate the board's lower portion. A PCIe 5.0 M.2 slot is covered by the top of these, and two PCIe 4.0 M.2 slots are hidden by the bottom heat sink, which is detachable with four screws. The same tool-less latch mechanism is used to install drives in each M.2 slot. This design improves thermal performance and airflow across storage drives, while also increasing user convenience.

Expansion Slots & EZ Release Mechanism

There are two PCIe 5.0 x16 slots, both reinforced with metal for added strength. The top slot features ASRock's EZ Release mechanism, making GPU removal easy without having to reach the latch under large cards. Simply pulling the tab at the end releases the graphics card securely.

Rear I/O Ports

The integrated I/O shield is finished in matte black and carries the Taichi logo. Connectivity options are extensive, featuring BIOS Flashback and Clear CMOS buttons, Wi-Fi antenna connectors, HDMI output, 3 USB 3.2 Gen 1 Type-A ports, 5 USB 3.2 Gen 2 Type-A ports, 2 USB 2.0 ports, and 2 USB4 Type-C ports.

The board also has high-quality audio jacks and a 5Gb LAN port. Excellent connectivity for peripherals, storage, and accessories is ensured by the total of 12 USB ports on the rear I/O. The board's wireless capabilities are further future-proofed by the integrated Wi-Fi 7 support.

Backplate & Structural Reinforcement

A partial metal backplate is visible when the board is turned over. This keeps the motherboard strong and thermally stable under stress by improving rigidity and assisting with heat dissipation.

RGB Lighting

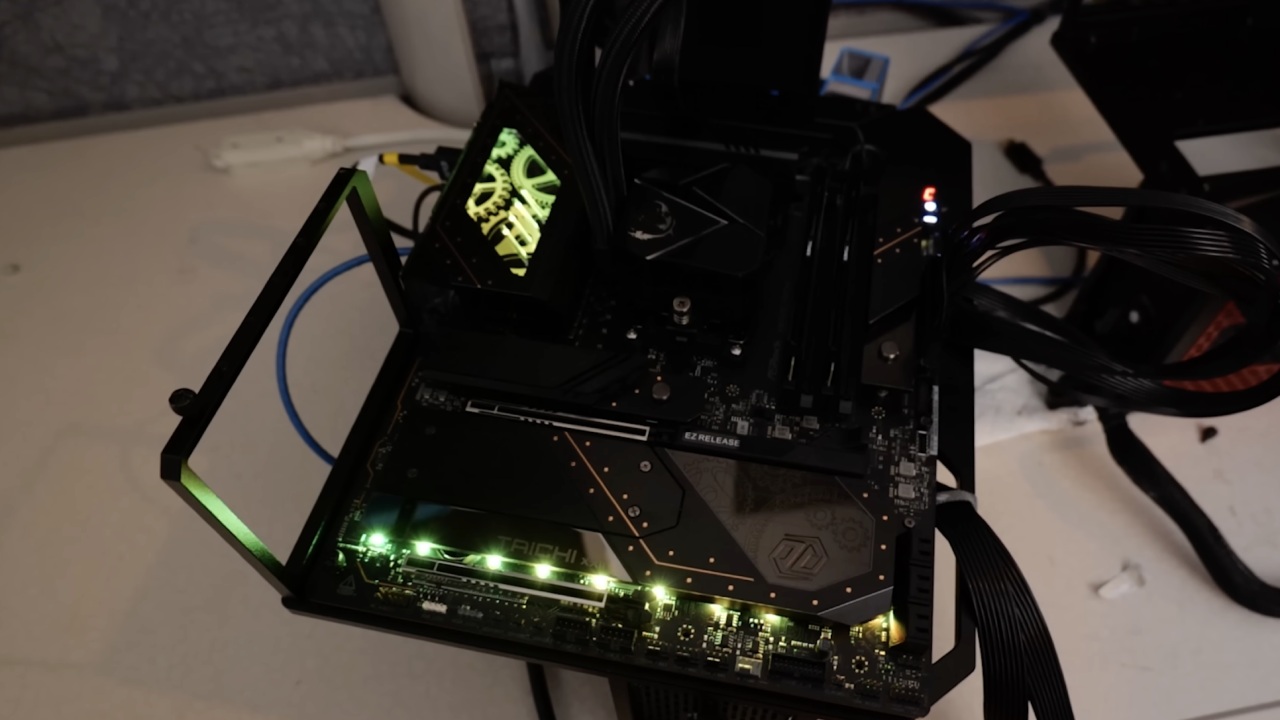

Underneath the primary heat sinks and on the rear I/O cover, RGB lighting creates a sophisticated yet lively glow. Although the lighting is more noticeable than on many X870 motherboards, it is still more subdued than on previous Taichi models, giving the board a chic, adaptable appearance without being overly bright.

ASRock, X870 Taichi, A, High-End Motherboard Built for, Next-Gen AMD, NoobFeed

Final Thoughts

As ASRock's flagship X870 motherboard, the X870 Taichi delivers all the premium features expected from a high-end AM5 platform. PCIe 5.0 support for both GPUs and storage, USB4 connectivity, Wi-Fi 7, and one of the most capable VRM setups on an X870 board make it an exceptional choice for enthusiasts and overclockers alike. The VRM cooling is robust, and the small integrated fan operates quietly in ASRock's use.

The board also stands out for its strong focus on usability, with its tool-free M.2 installation, easy-release GPU slots, and well-thought-out layout.

ASRock's BIOS interface and related software are the only major problems. They seem to be behind the competition. This isn't a big deal for people who utilize software tools or don't modify firmware settings too often.

Overall, the ASRock X870 Taichi is an amazing flagship motherboard. It has many features, is well-built, and features design elements carefully thought out. It can handle high-end gaming setups and demanding workstation builds thanks to its many ports, advanced cooling, and great power delivery, all while looking sleek and modern.
