Gigabyte X870E Aorus Extreme X3D AI Top Review: The Most Overengineered Motherboard Ever

Gigabyte’s X870E Aorus Extreme X3D AI Top represents the pinnacle of overengineered motherboard design and innovation.

Hardware by Katmin on Nov 13, 2025

When it comes to high-end motherboards, Gigabyte's X870E Aorus Extreme X3D AI Top might just take the crown as one of the most over-the-top creations ever made. It feels as though Gigabyte's engineers were told to throw every possible feature into one board and then make it as premium and expensive as possible.

The result is a product so extravagant that it borders on absurd—but also fascinating for enthusiasts who love cutting-edge hardware.

Gigabyte, X870E Aorus Extreme, X3D AI Top Review, Most Overengineered, Motherboard Ever, NoobFeed

First Impressions

The first impression comes not from the board itself but from the sheer size of the box. It's massive—big enough to rival the packaging of an mATX case. Inside, it's a treasure chest of accessories, many of which feel both impressive and unnecessary. A 32GB kit of VCOL memory rated at 8000MT/s is included, although it's uncertain if this comes with the retail version. The presentation is top-tier, showcasing Gigabyte's commitment to luxury.

Among the many inclusions are a sippy cup and a bottle opener—yes, really. It's a strange but amusing addition that sets the tone for how overengineered everything about this motherboard is. You also get thermal probes, Velcro straps for cable management, and even a dedicated RAM cooler with an active fan.

Packed with Accessories

Beyond the novelty items, the X870E Aorus Extreme X3D AI Top includes practical accessories, such as PWM fan breakout hubs—there are 12 fan connectors in total—along with a USB Type-C DAC, Wi-Fi 7 antenna, RGB and USB 2.0 breakout cables, and SATA cables for 2.5-inch or 3.5-inch drives. Documentation and front panel connectors are also included, with all necessary networking drivers available directly through the BIOS once the device is connected via Ethernet or Wi-Fi.

One standout accessory is the contact frame, which replaces the factory CPU retention system. It provides even mounting pressure and better thermal conductivity, making it ideal for enthusiasts who experiment with custom cooling setups.

Design and Build

The board itself is a work of art that is too much. It has metal armor and magnetic plates all around it that hide extra connectors. Every little thing feels high-end. There are fan headers, LED demo headers, and temperature sensors under the magnetic covers that work perfectly with the thermal probes that come with them.

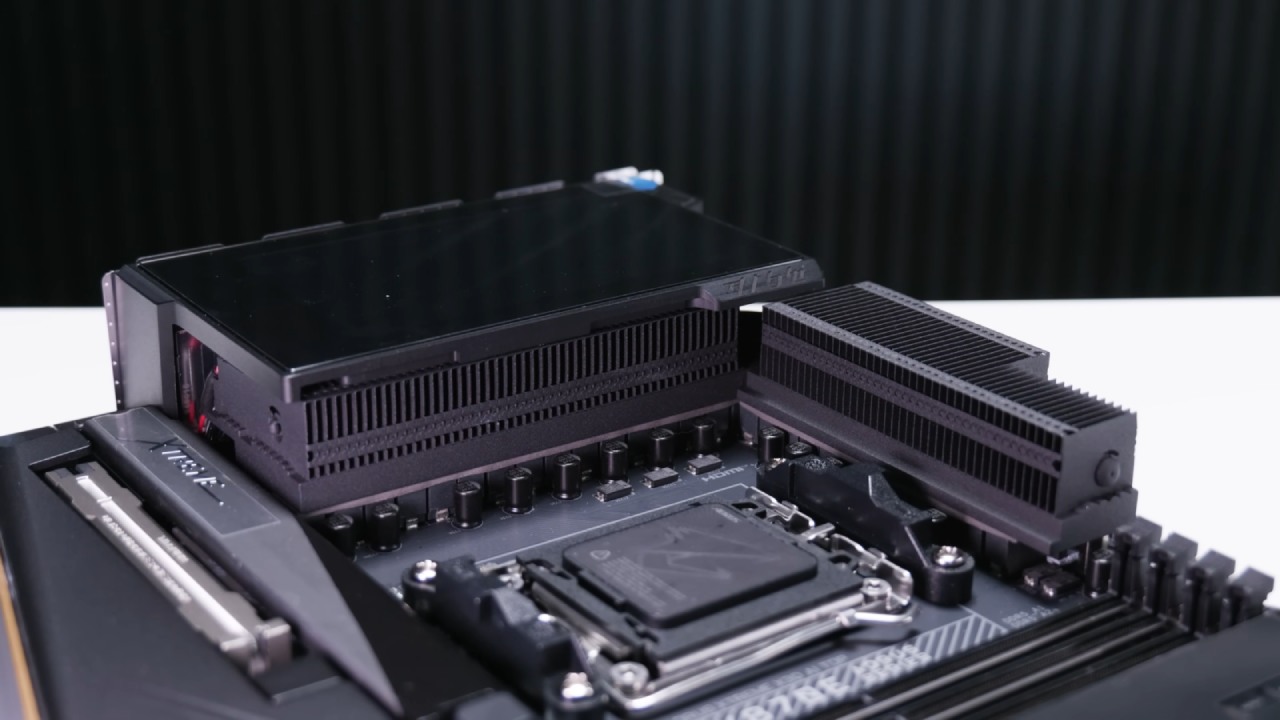

A massive 24+2+2-phase VRM architecture with 110A smart power stages handles the power supply. A heat pipe system connects the heatsinks, allowing them to cool down as much as possible. The I/O cover features a built-in 5-inch display that allows for customization, although it isn't utilized during the initial setup.

The board also features an AM5 socket with standard mounting compatibility, and flipping it over reveals a full-metal backplate that's not just for aesthetics—it actively helps with heat dissipation.

Gigabyte, X870E Aorus Extreme, X3D AI Top Review, Most Overengineered, Motherboard Ever, NoobFeed

Memory and Cooling Innovation

The X870E Aorus Extreme X3D AI Top supports up to 256GB of DDR5 memory at speeds of up to 9000MT/s. Gigabyte even includes an active cooling shroud for the RAM, featuring integrated magnets and pogo pins for both power and RGB lighting. It snaps on with satisfying precision and keeps high-speed memory modules running at optimal temperatures.

Storage and PCIe Configuration

Storage options are another area where this board goes overboard. There are five M.2 slots—two PCIe Gen 5 and three PCIe Gen 4. Each slot can be accessed without tools thanks to a button-and-latch mechanism. For the top M.2 slot, there's an optional gigantic heatsink that resembles a CPU air cooler in size and design, featuring RGB lighting and a massive fin stack for superior thermal performance.

Users get one Gen5x16 slot, one Gen5x8 slot, and one Gen4x4 slot on the PCIe side. Each slot has its own quick-release mechanism. It's easy to switch out GPUs or expansion cards without making the case look messy.

Rear I/O and Connectivity

The rear I/O is as premium as the rest of the board. It features dual 10Gb Ethernet ports, two USB4 Type-C ports, multiple USB 3.2 Type-A ports, HDMI 2.1, optical audio out, and Wi-Fi 7 antenna connectors. There's also a Q-Flash Plus button for easy BIOS updates and a programmable smart button for user customization.

Performance, Practicality, and Price

Now, here's where things get interesting. While the engineering behind this motherboard is undeniably impressive, it's also clear that this product isn't designed for practicality. It's for those who want everything—whether they'll use it or not. The pricing is expected to be well above $1,000, potentially nearing $2,000 in the US market. It's a financial commitment that few can justify, but one that represents the pinnacle of enthusiast-level excess.

Despite its absurdity, the attention to detail is phenomenal. The magnetic RAM cooler, 24-phase VRM setup, built-in display, and optional accessories make it feel like the supercar of motherboards. It's overkill for almost anyone, yet it's also undeniably desirable.

Who Is It For?

To be honest, very few people require this motherboard. Even people who really push their computers to the limit or those who work with AI won't need a platform like this. It's not about what you need; it's about what you desire. This board is for collectors, technology enthusiasts, and individuals who take pride in owning the most expensive electronics available.

If you're a high-end enthusiast with unlimited funds, or simply someone who appreciates over-engineered technology, this board is for you. It's not practical, but it's a marvel of design and capability.

Gigabyte, X870E Aorus Extreme, X3D AI Top Review, Most Overengineered, Motherboard Ever, NoobFeed

Final Thoughts

The Gigabyte X870E Aorus Extreme X3D AI Top is excessive, unnecessary, and over-the-top. That's what makes it so interesting. It was made not because it was needed, but because the person who made it loved engineering and coming up with new ideas.

Even though not many people will ever need or be able to afford it, it demonstrates how far technology can be pushed to create something truly amazing. For most people, it's a dream part—crazy, gorgeous, and hard to forget.
