AM5 Sapphire B850A Wi-Fi 7 Motherboard Overview and Benchmark Results

A detailed examination of Sapphire’s B850A Wi-Fi 7 motherboard, highlighting design choices, connectivity limits, performance behaviour, and platform value.

Hardware by Naheyan Tahmin on Dec 02, 2025

When Kit Guru visited Sapphire at Computex this year, we were taken aback by the range of AMD motherboards. These are all AM5 socket motherboards that support current Zen5 processors, and we're sure they'll support Zen6 in the future.

Sapphire took a few months to launch these motherboards. And we've subsequently learned that they start at a very low $69, but we're not clear on the top of the stack, as the Nitro Plus X870E Phantom Link motherboard won't launch until 2026. We do, however, know that this Nitro Plus B850A Wi-Fi 7 is retailing for $158 in the US at the moment.

AM5, Sapphire B850A Wi-Fi 7 Motherboard, Overview and Benchmark Results, NoobFeed

That's the motherboard under review. In a world where AMD X870 motherboards can cost $300 or even $400, a motherboard under $160 counts as budget, and that becomes clear with the included accessories.

We get an actual paper installation guide, a Wi-Fi 7 antenna, and two SATA cables. The board looks smart and relatively basic. You don't get any quick-release covers on the M.2 slots, for example, but the selection of ports and connectors is present.

Rear I/O and USB Configuration

We have to ask how Sapphire has produced a budget board that doesn't look like one. The rear I/O reveals some of the cost savings. There are no USB4 ports. One USB-C rated at 10Gbits/s is present, along with three USB-A ports also rated at 10Gbits/s. There are four USB ports.

The internal header for the front panel USB-C, which is often rated at 20Gbits/s, is instead rated at 5Gbits/s. Two internal USB-A ports at 5Gbits/s and a header for two more USB2 ports are included.

If fast USB-C is important for storage or external transfers, this could be a limitation. If you only need functional USB connectivity for accessories or phone transfer, this setup is likely acceptable.

VRM Design and Power Delivery

Another area where Sapphire appears to have saved money is the VRM. The configuration is 12+2+1x55A. The controller is by Richtech, and the VRMs are by AOS or Alpha and Omega Semi, using a Dr Mos design.

Doing the math, 12*55A is 660A. At 100% that is unnecessary, so 350A at around 1V could supply hundreds of watts. A typical Ryzen processor pulls 70W for Ryzen 7 and over 200W for Ryzen 9. On paper, the VRM may not look impressive, but in practice, it can handle any AM5 processor. The question is real-world performance.

M.2 and Expansion Slot Layout

Accessing the M.2 slots requires removing screws. The bottom heat sink uses two screws. The top heat sink uses four and covers two M.2 slots. The primary M.2 has a thermal pad for both sides of the SSD. The other two slots lack rear thermal pads, making them better suited to single-sided SSDs.

The primary PCIe expansion slot is Gen5x16 for the GPU. The second slot is mechanically x16 but electrically Gen4x4 from the chipset and shared with an M.2. The bottom slot is Gen4x2.

Effectively, using two M.2 slots is practical, and four SATA ports with two supplied cables provide further storage options.

Performance Testing

In Cinebench R23, the Ryzen7 9800X3D performs as expected. CPU power draw is 133W, clock speed is 5.22GHz, and CPU temperature is 68°C at a 19°C ambient with a 360mm cooler.

VRM temperatures after 15 minutes of Cinebench were notable. Without direct airflow and relying only on AIO airflow, VRM temperatures remained controlled.

Gameplay on the RTX 4090 delivered the expected performance. Frame rates aligned with expectations for this CPU/GPU pairing.

Geekbench6 Multicore

The same pattern continued with Sapphire consistently at the bottom by a small margin.

AM5, Sapphire B850A Wi-Fi 7 Motherboard, Overview and Benchmark Results, NoobFeed

Gaming Benchmarks

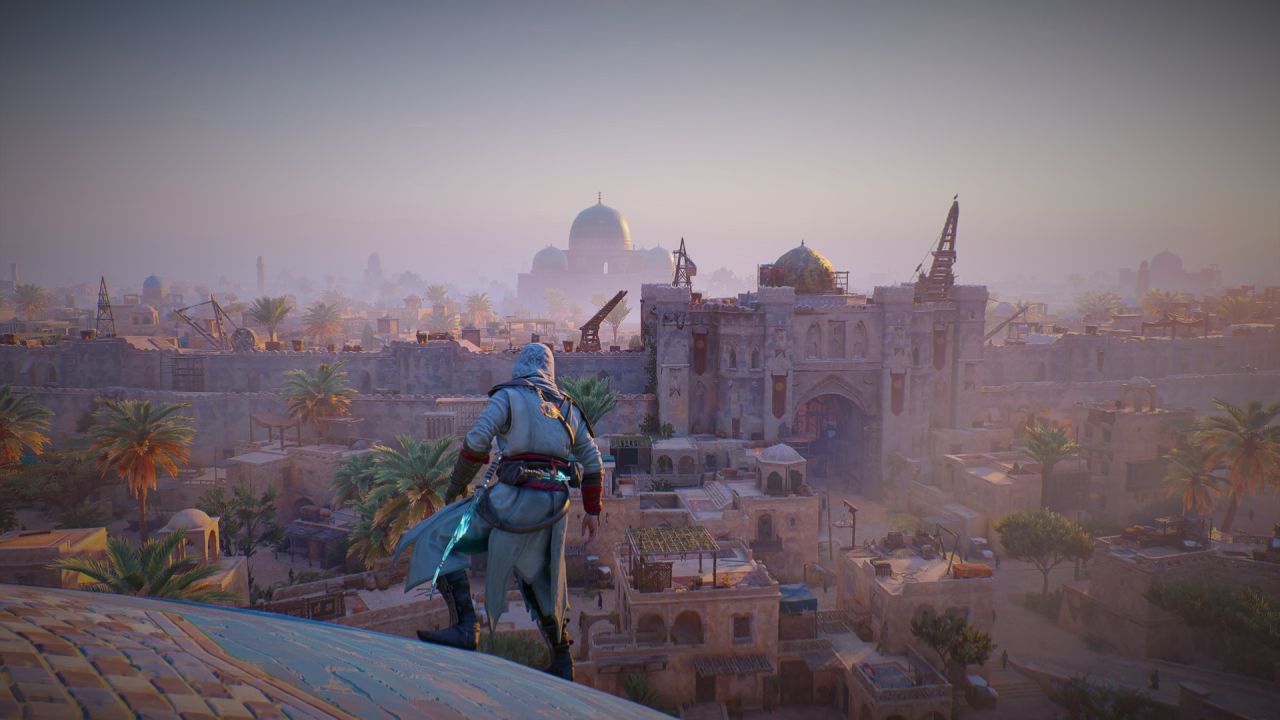

1080p Far Cry 6 Sapphire achieved 25 FPS below the best score of 258 FPS. Far Cry 6 1440p Sapphire moved ahead of one competitor board but stayed a little behind others. 1080p Assassin's Creed Mirage Sapphire experiences a 10–15 FPS drop with no apparent reason. Assassin's Creed Mirage at 1440p. The results were closer, but Sapphire was still the lowest.

Final Thoughts

Wi-Fi 7 support works effectively. Sapphire has not disclosed the OEM responsible for manufacturing this board. It is not a simple rebrand from another major manufacturer.

Priced toward the budget end of the AM5 market. Understated styling with no RGB. Rear I/O offers only a single USB-C port, and no USB4M.2 access; several screws are required with no quick-release mechanism. Effective M.2 support is limited to two slots due to lane sharing.

Because of the board's price, consistent operation, and overall design, it earns a rating of 8.5 out of 10 and a Worth Buying award.
