PNY GeForce RTX 5060 Ti ARGB Epic-X OC Review: Affordable Performance and Cooling

Triple-fan cooling, subtle RGB accents, and a 16GB configuration make the Epic X ARGB OC a capable 1440p performer.

Hardware by Masaru Hoshino on Oct 23, 2025

After the first GPU introduction, the choice of what to buy is less about the core processor from AMD or Nvidia and more about what the partner brands have to offer. These extras, like a factory overclock, a better cooling system, or even a game that comes with the device, might help it stand out in a competitive market.

The RTX 5060 Ti is already a hit with gamers because it is cheap, making it one of the more affordable RTX cards on the market. The PNY Epic X ARGB OC wants to take this even farther by offering a mix of performance, looks, and value.

PNY, GeForce RTX 5060 Ti, ARGB Epic-X OC, Review, Affordable Performance, Cooling, NoobFeed

Design and Build Quality

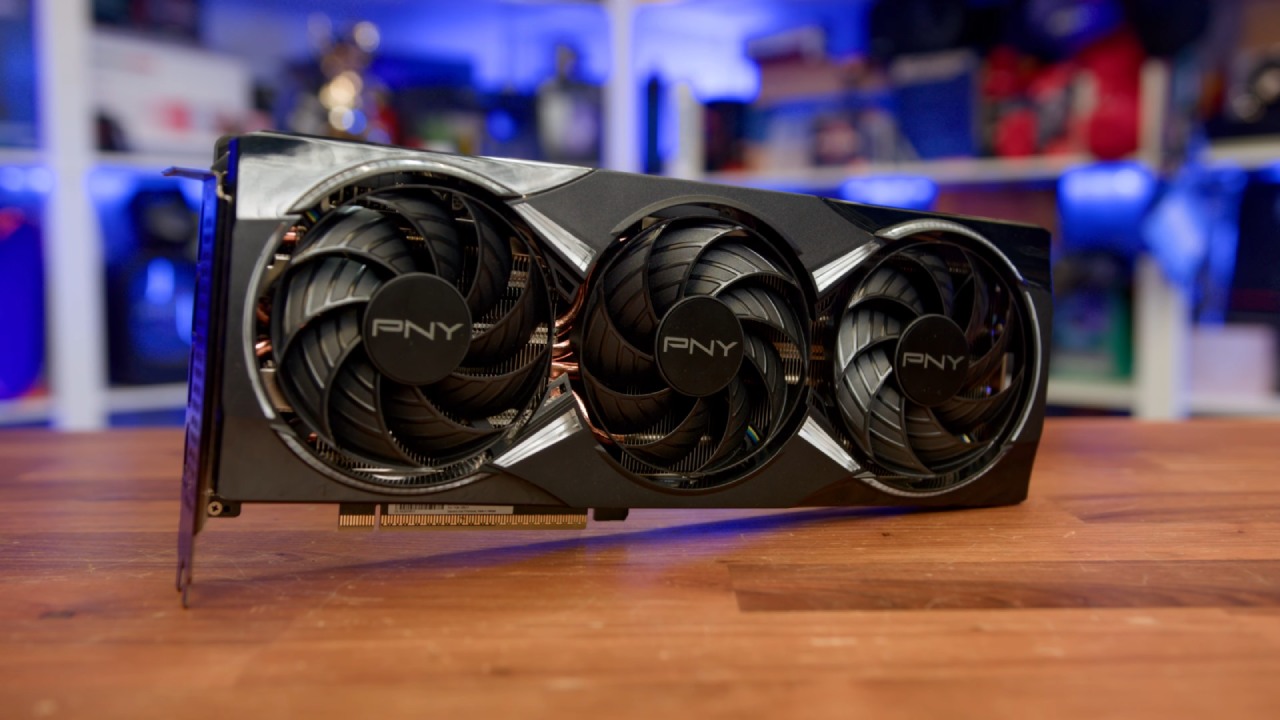

Right out of the box, the PNY RTX 5060 Ti Epic X ARGB OC stands out with its triple-fan cooler design. At $499, it's one of the better-priced cards in its category, though it's still $70 above MSRP.

Considering it includes RGB lighting and a factory-boosted overclock up to 2692MHz, that additional cost feels justified. It's also the 16GB model, which makes it far more capable for 1440p gaming compared to the 8GB version.

PNY has kept the design practical and efficient without unnecessary bulk. Measuring 299mm long, 106mm tall, and just 37mm thick, it fits comfortably in most mid-tower and even smaller form-factor PC cases. Weighing only 1020g, it's surprisingly light for its size.

The card is predominantly plastic, but it feels sturdy and well-built, with a mix of glossy and matte black finishes.

The ARGB lighting runs in an infinity-symbol pattern through the middle fan and around the outer fans, giving it a distinctive appearance. While not the most eye-catching GPU we've seen, the lighting helps enhance its overall look. The top features an illuminated PNY logo, perfect for horizontal mounting in cases with side windows.

A full-metal backplate not only strengthens the card but also improves cooling, with ventilation cutouts that enhance airflow. The card's two-slot design means compatibility shouldn't be an issue. The inclusion of four display connectors supports multi-monitor setups, making it useful not just for gaming but also for productivity.

Cooling and Power Design

Beneath the shroud, the cooling system is impressive. The heat sink runs the full length of the card and uses four copper heat pipes that pass through a cold plate, making direct contact—slightly off-center—with the GPU core. The surrounding plate contacts the memory ICs and power delivery components, helping maintain stable thermals.

On the backplate, two thermal pads help transfer heat from the memory modules. Power delivery is via a 5+2-phase setup, with Vish Sic 653A DrMOS 50A phases for the GPU core and Cinno Power dual-channel MOSFETs for memory.

The card uses a single 8-pin power connector placed close to the rear I/O—an unusual but understandable choice given the short PCB design.

PNY, GeForce RTX 5060 Ti, ARGB Epic-X OC, Review, Affordable Performance, Cooling, NoobFeed

Overclocking and Performance

Although the card ships factory-overclocked, we managed to push it further by adding 320MHz on the core and maxing out the memory and power limit by 10%. This boosted clock speeds from 2477MHz to 2727MHz, with boost clocks rising from 2692MHz up to 3120MHz.

In our stress test loop using F1 24, stock temperatures averaged in the mid-60°C range for both the GPU and memory, with fan speeds around 1260RPM. Under overclocked conditions, temperatures rose only slightly to 67°C, and fan speeds increased modestly to 1300 RPM. Average power consumption went from 160W to 170W—an acceptable trade-off for the added performance.

Gaming Benchmarks

In A Plague Tale: Requiem, the PNY card outperformed the Inno3D RTX 5060 Ti by about 3fps (around 4%) and edged past the AMD RX 9060 XT by a single frame. Once overclocked, performance increased by roughly 8%, allowing the card to beat the RTX 4070 by 2 fps.

In Black Myth: Wukong, the Inno3D and PNY were neck-and-neck at stock settings, but after overclocking, the PNY jumped from 51fps to 56fps—a nearly 10% improvement, once again beating the RTX 4070 by a small margin.

In Cyberpunk 2077, the PNY already led at stock, outperforming the RTX 4070 by 2fps. Overclocking delivered an additional 15% performance gain over the Inno3D variant, 6% over stock, and even edged past the RX 6800 XT, bringing it close to the RX 6900 XT in performance.

PNY, GeForce RTX 5060 Ti, ARGB Epic-X OC, Review, Affordable Performance, Cooling, NoobFeed

Thermals and Efficiency

Thermal performance across the board was excellent. The PNY maintained stable temperatures of around 67°C under load, both at stock and overclocked settings. Compared to the Inno3D Twin X2, it ran slightly warmer, but given the higher clocks, this is expected.

The large triple-fan cooler kept things under control while remaining quiet, which is impressive for a card at this price.

Final Thoughts

Overall, PNY has delivered a well-rounded and capable GPU with the Epic X ARGB OC. Its triple-fan cooler may seem excessive for a 5060Ti, but it ensures great thermals and quiet operation. The factory overclock provides a noticeable performance bump, and the card has excellent overclocking potential for enthusiasts.

At $499, it sits close to entry-level RTX 5070 models, which can occasionally be found for around $539 or even less for refurbished units. For those comfortable with open-box deals, a 5070 might make more sense.

However, suppose you want a brand-new card that combines performance, efficient cooling, subtle RGB aesthetics, and plenty of headroom for tuning. In that case, the PNY RTX 5060Ti Epic X ARGB OC stands out as a strong contender in the midrange market.

In the end, the PNY card works well, stays cool, and is built better than you'd expect for the price. This GPU is an obvious winner for gamers that want good graphics and value without spending a lot of money.
