Sparkle Studio G Ultra850 Thunderbolt 5 eGPU Review: High-Performance External GPU

Explore the Sparkle Studio G Ultra850 eGPU enclosure with Thunderbolt5 and USB4V2, delivering high-end GPU performance for mini PCs.

Hardware by Mitsuba Miyu on Dec 14, 2025

The company Sparkle, which has been making external GPU solutions since Thunderbolt 3 became famous, has released a new Thunderbolt 5 eGPU enclosure.

The newest model, the Studio G Ultra850, supports Thunderbolt 5 and USB4V2 and remains compatible with Thunderbolt 3, Thunderbolt 4, and regular USB4. Sparkle has recently been investing more in Intel Arc graphics cards. Yet it is still buying high-end eGPU cases, showing its commitment to this small market.

Sparkle Studio G Ultra850, Thunderbolt 5 eGPU Review, High-Performance External GPU, NoobFeed

Design, Size, and Power Delivery

The Ultra850 from Studio G is not a small sound booth. Its 3.5-slot internal clearance means it can accommodate very large graphics cards, including up to an RTX 5090.

This product comes with a built-in 850W power source that can send up to 600W to the GPU. This means that the enclosure can be used with current high-end cards that need a lot of extra power.

More I/O is available at the back of the enclosure, which isn't very common in current eGPU designs. This thing can connect to a lot of things.

It has Thunderbolt 5 ports for upstream and downstream connections, Ethernet for 2.5Gb speeds, USB3.2 with both full-size USB-A and USB-C ports, and a design that helps keep cables tidy for workstation-style setups.

Installation and Internal Layout

It's easy to get to the internals. The case can swing open to make GPU installation easier because there are two thumbscrews, one in the front and one in the back.

This unit comes with the full 850W power supply, unlike some newer Thunderbolt 5 eGPU enclosures that don't. This device has three 8-pin PCIe power connectors and a 600W 12V power connector, so it's ready for the latest Nvidia GPUs. Some newer AMD cards have started using similar connectors, too.

GPU Selection and Compatibility

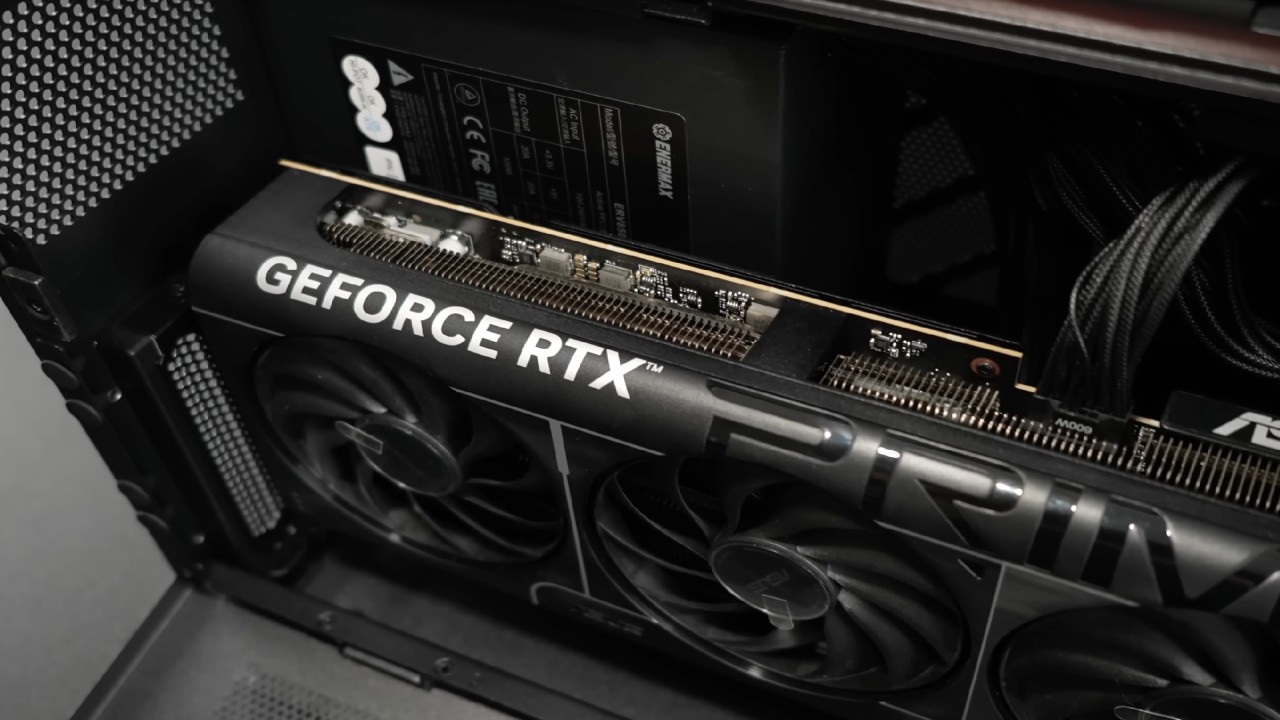

As this is a bare enclosure, the user must add a discrete GPU. The RTX5080 was chosen over the RTX5090 after a comparison because it offered a better balance between speed and power use. The enclosure provides plenty of extra space for extended loads, thanks to its 12V high-power connector and 850W PSU.

This applies to products that use Thunderbolt 3, 4, or 5, or USB 4 or 4V2. To fully take advantage of the faster bandwidth, a system that supports USB4V2 was used for testing. On Intel platforms, where makers often avoid costs associated with branding, this effectively acts like Thunderbolt 5.

Test System Overview

The Minisforum MS02 mini workstation, a small machine that supports low-profile dual-slot GPUs and has two USB4V2 ports on the front, was used with the enclosure.

Even though they aren't actually Thunderbolt 5 ports, they work as if they are. The system has an Intel Core Ultra9285HX and 64GB of RAM running at 4800 MT/s.

Even though the built-in Intel graphics were still available, all video output went through the external GPU to ensure the best possible performance. During the tests, Nvidia's eGPU activity tools showed that the external GPU remained operational throughout.

USB4V1 vs USB4V2 and Thunderbolt 5 Explained

USB4V1 can send data at up to 40 Gbit/s. It usually charges devices at up to 100W, but devices with a longer power range can get up to 240W. USB4V2 greatly increases the bandwidth, giving up to 80 Gbits.

It also has asymmetric modes that can do 120 Gbits in one direction and 40 Gbits in the other. USB4V2 can deliver up to 240W of power, making it much better for charging high-performance computers.

Thunderbolt 5 takes this even further, allowing up to 120 Gbits in one direction and 80 Gbits in both directions. Some tests done early on show that future versions might be able to send up to 120 Gbits in both directions.

But right now, eGPU enclosures are still limited by PCIe x4 links, which only allow about 64Gbits of throughput in the real world. Even with this issue, the jump from USB4V1 to USB4V2 or Thunderbolt5 results in measurable speed improvements.

Sparkle Studio G Ultra850, Thunderbolt 5 eGPU Review, High-Performance External GPU, NoobFeed

Connection Speed Testing

The difference between USB4 and USB4V2 becomes clear right away when diagnostic tools measure real-time speed. When plugged in with a regular USB4 cable, the fastest real-world transfer speed was about 30 Gbits.

When I switched to USB4V2 or Thunderbolt5, the speed increased to about 48 Gbits. While this might not seem like a big deal on paper, the extra bandwidth lets the GPU push more data at once, which means better performance in games.

Gaming Performance Comparison

At 1440p with the highest settings and no DLSS enabled, Shadow of the Tomb Raider was used as the primary standard for measurement. The system averaged 128 fps when linked over USB4.

When the conditions were the same, changing to USB4V2 or Thunderbolt5 raised the average to 188 fps. This clear increase in speed shows how bandwidth issues can slow down even the most powerful GPUs when used with slower external connections.

But synthetic scores showed something else. The USB4 and USB4V2 scores were mostly the same across runs, with small changes in either direction from time to time. These findings show that synthetic tests don't seem to fully capture the real effect of higher bandwidth. This is especially true for gaming workloads.

Real-World Gaming Tests

More games were tried to see how well performance was maintained over time. Spider-Man 2 played at 1440p with very high settings and no DLSS. The GPU used almost 200W, even though the enclosure could handle up to 350W.

At this level of detail, the GPU just didn't need any more power at this resolution. It wasn't a matter of power or heat, but rather the limited speed that comes with using an external GPU.

Cyberpunk 2077 was run at the original 1440p ultra settings without any upscaling. The average performance was about 88 fps, which is great for an eGPU setup. Allowing Nvidia's multi-frame creation made a big difference in the results.

With frame generation set to x4 and no resolution scaling, performance rose to about 280fps. This shows how modern GPU features can help address some of the problems with external connections.

Sparkle Studio G Ultra850, Thunderbolt 5 eGPU Review, High-Performance External GPU, NoobFeed

Use Cases and Limitations

External GPUs can't match the raw speed of a PCIe x16 desktop slot, even with Thunderbolt 5 or USB4 V2. The connection still limits pixel throughput, mainly at higher levels.

But this level of performance is more than enough for 1440p games at high refresh rates and difficult creative tasks on small workstations and mini PCs.

Right now, handheld computers can only use USB4 or Thunderbolt4, so they can't use USB4V2 or Thunderbolt5 eGPU enclosures.

Until suitable handheld devices become available, only mini PCs and laptops that support the newer standards can use these faster docks to their full potential.

Final Thoughts

The Ultra850 from Sparkle Studio shows that Thunderbolt 5 and USB4 V2 can make a real-world difference for external GPU setups.

It's a good fit for high-end GPUs like the RTX 5080 and others with strong power delivery, ample internal space, and extra I/O. When used with a good mini PC, the enclosure performs at a level that brings eGPU solutions closer to standard desktop systems.
